Panel Roll Forming Machine
Floor decking roll forming machine is the special equipment for continuous rolling and cold-forming on steel sheet.
It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished panel.
The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.
Machine Video
Machine Specification
|
Suitable material
|
PPGI GI AL
|
|
Coil Width
|
914/925/1000/1200/1220/1250mm as custom
|
|
Thickness
|
1-1.5mm as custom
|
|
Power
|
380V 50Hz 3Phase as custom
|
|
Main motor
|
11+11KW Siemens
|
|
Hydraulic motor
|
7.5KW Siemens
|
|
Speed
|
15-30m/min
|
|

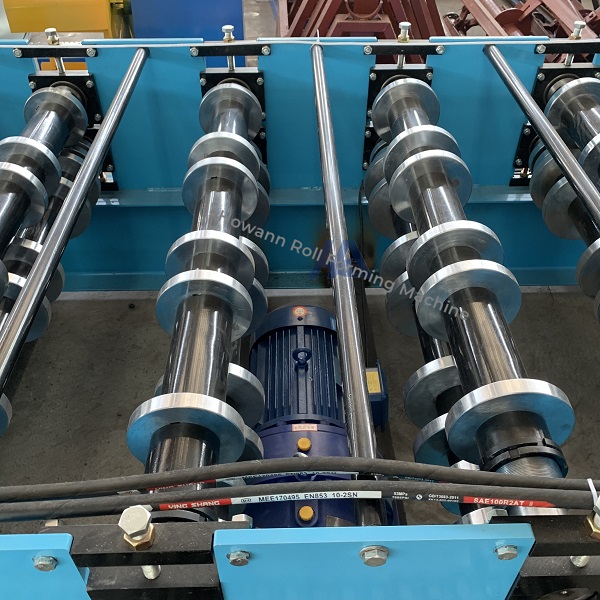

Forming stations
|
22-28 rows
|
|
Roller material
|
Cr12 steel with vacuum heat treatment HRC57°-60°
|
|
Shaft material
|
45# steel quenched and tempered
|
|
Shaft diameter
|
90mm
|
|
Chain
|
1.2 inch
|
|
Screem HMI
|
Delta , Touch Screen
|
|
PLC
|
Delta , Siemens
|
|
Processing precision
|
Within 1mm
|
|
Size
|
11.6m×1.5m×1.2m
|
|
Weight
|
9.5T
|
Machine Features
Packaging Type Of Bag
Machine Function
Machine Option
Automatic floor panel roll forming machine for construction. PLC control, 0.3-1.6mm material thickness, 12-40m/min speed, CE-certified steel floor panel forming equipment with durable components.
Machine Application
